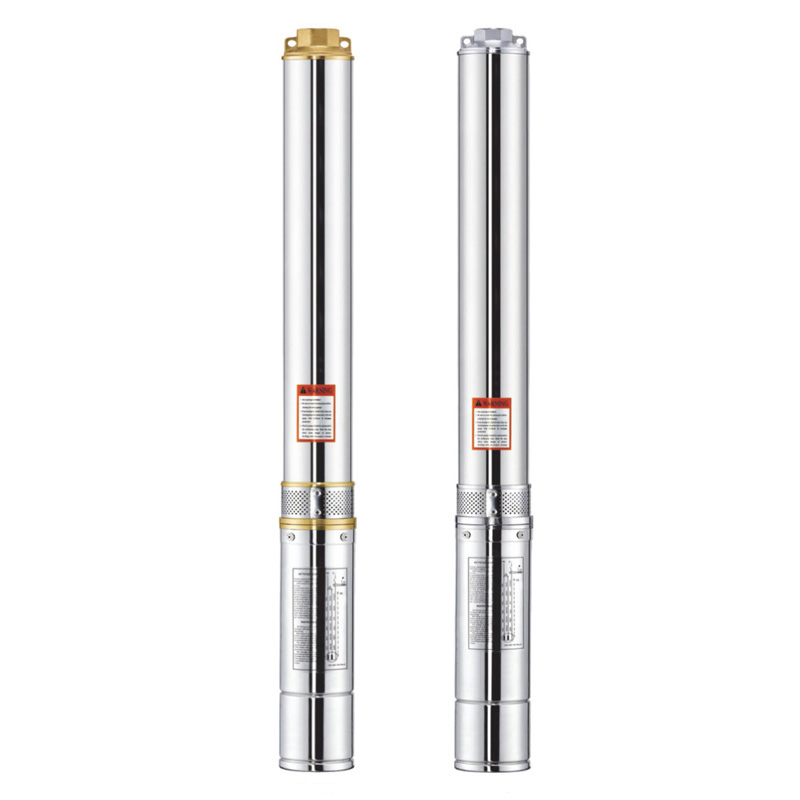

5SD/5SS

Applications
For water supply from wells or reservoirs
For domestic use, for civil and industrial applications
For garden use and irrigation
Operating conditions
Maximum fluid temperature up to +35°C
Maximum sand content: 0.25%
Minimum well diameter: 5"
Motor and Pump
Rewindable motor
Single-phase: 220-240V/50Hz
Three-phase: 380-415V/50Hz
Equip with start control box or digital auto-control box

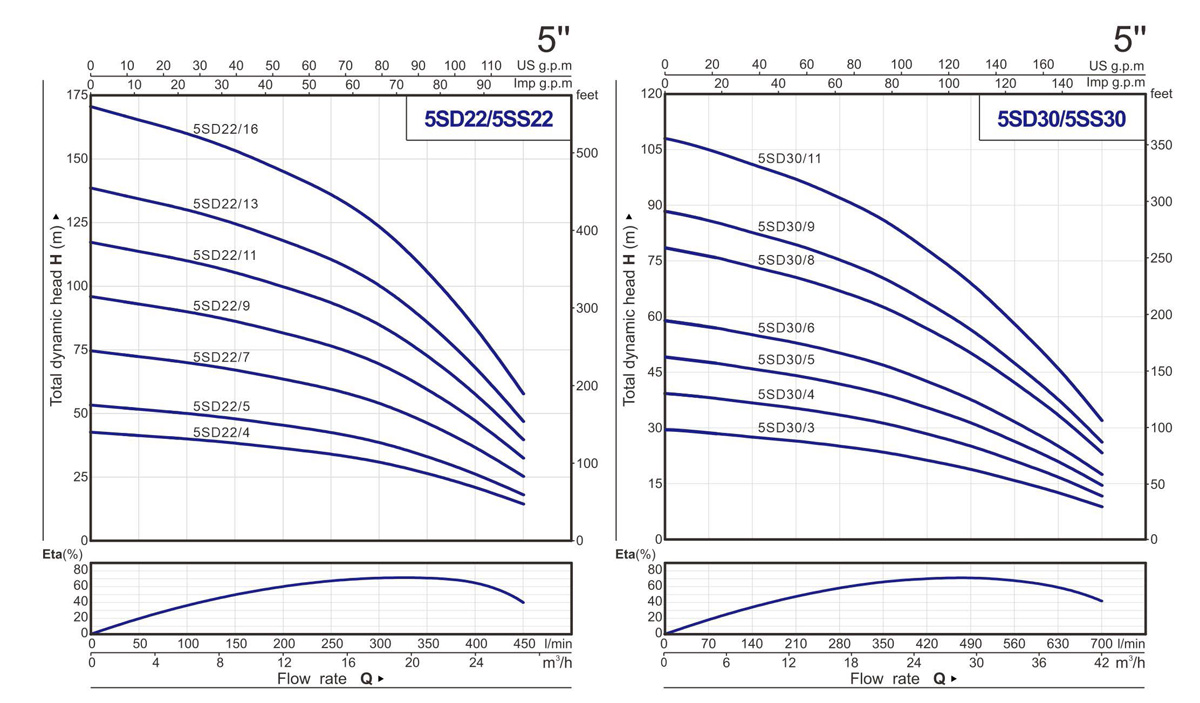

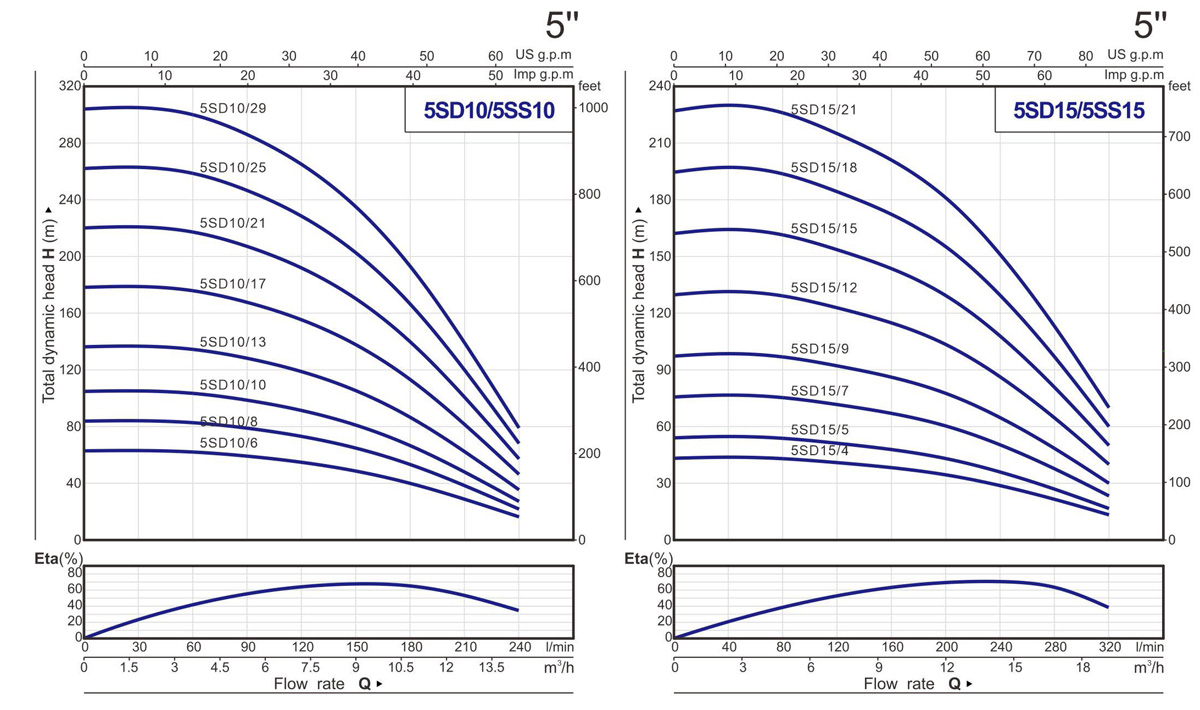

Curve tolerance according to lS0 9906
Options on request
Special mechanical seal
Other voltages or frequency 60Hz
Single phase motor with built-in capacitor
Warranty: 14 months
(according to our general sales conditions)
