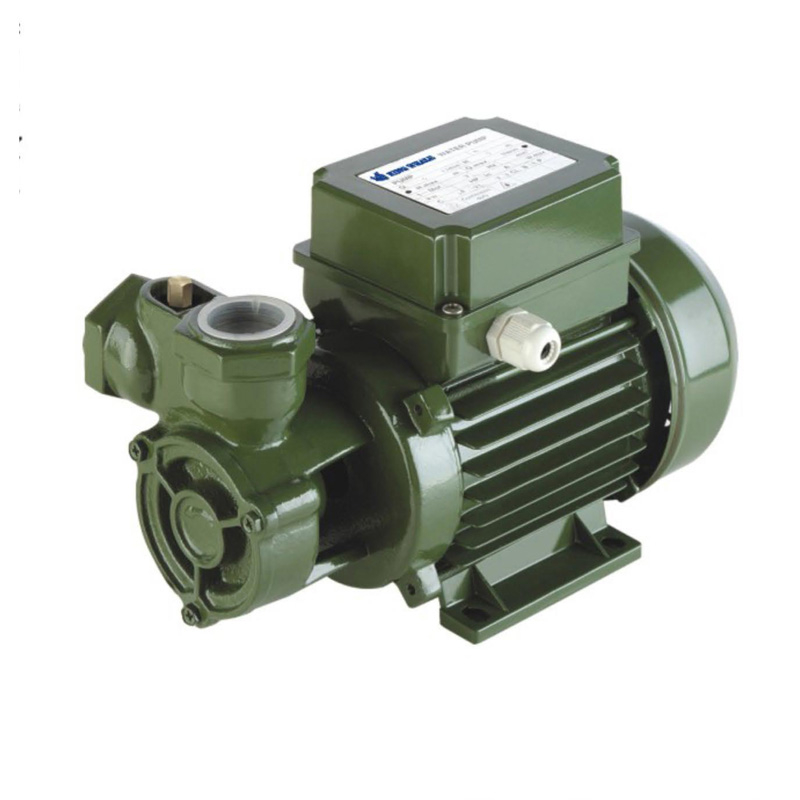

KF-1

◆These pumps are suitable for handling clean water not containing abrasive particles and fuids which are not chemically aggressive to the pump components. Reliable, economical and simple to use, they are suitable for domestic applications and the automatic distribution of water from surge tanks, watering gardens and for boosting insuffcient mains water pressure. These pumps should be installed in a covered area, protected against the weather.
PERFORMANCE RANGE
◆Flow rate up to 60 L/min.(3.6m³/h)
◆Head up to 60m
OPERATING LIMITS
◆Suction lift up to 9m
◆Fluid temperature up to 60℃
◆Maximum ambient temperature 40℃

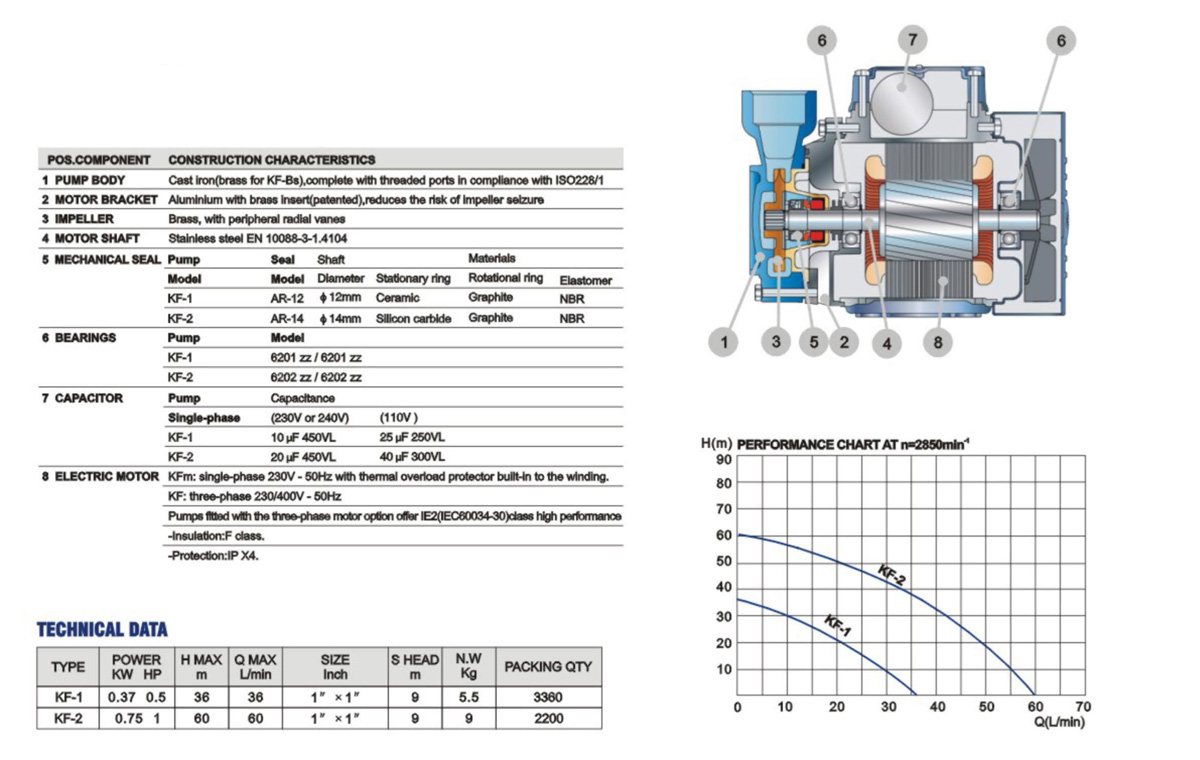

STANDARD DATA AND EQUIPMENT
Single phase 220V/50Hz.Brass impeller, carbon steel motor shaft, with thermal protector inside.
Other model and material such as three phase, 110V, 60Hz, dual voltage, stainless shaft, etc, will be available upon request.
