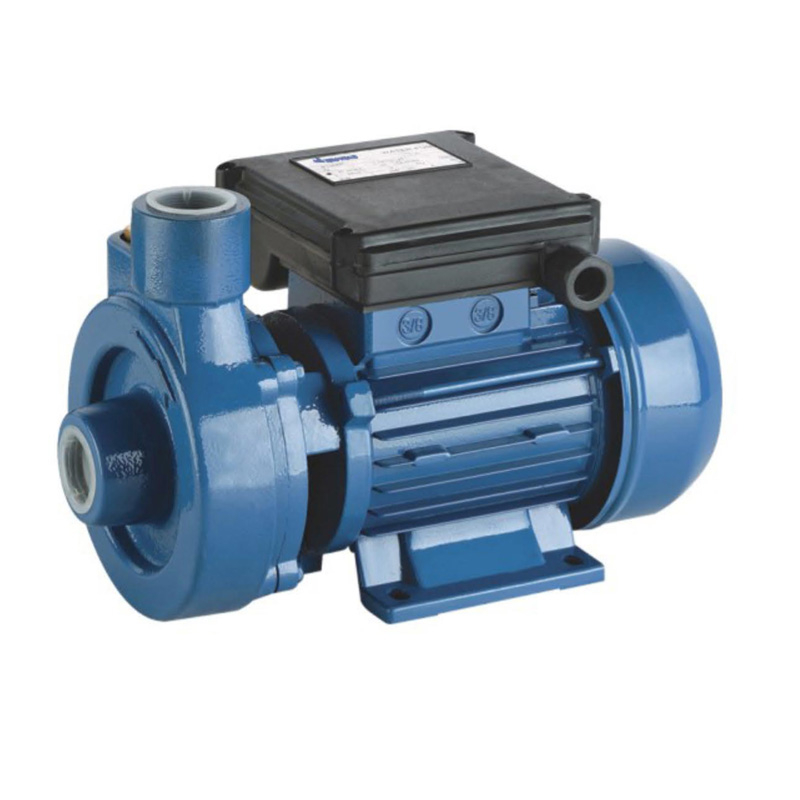

DX

◆These pumps are suitable for handling clean water not containing abrasive particles and fiuids which are not chemically aggressive to the pump components. They are extremely reliable, simple to use, quiet and virtually maintence-free, finding many uses in domestic and civil applications, and in particular the automatic distribution of water from small and medium-sized surge tanks, transferring water, watering gardens, etc.

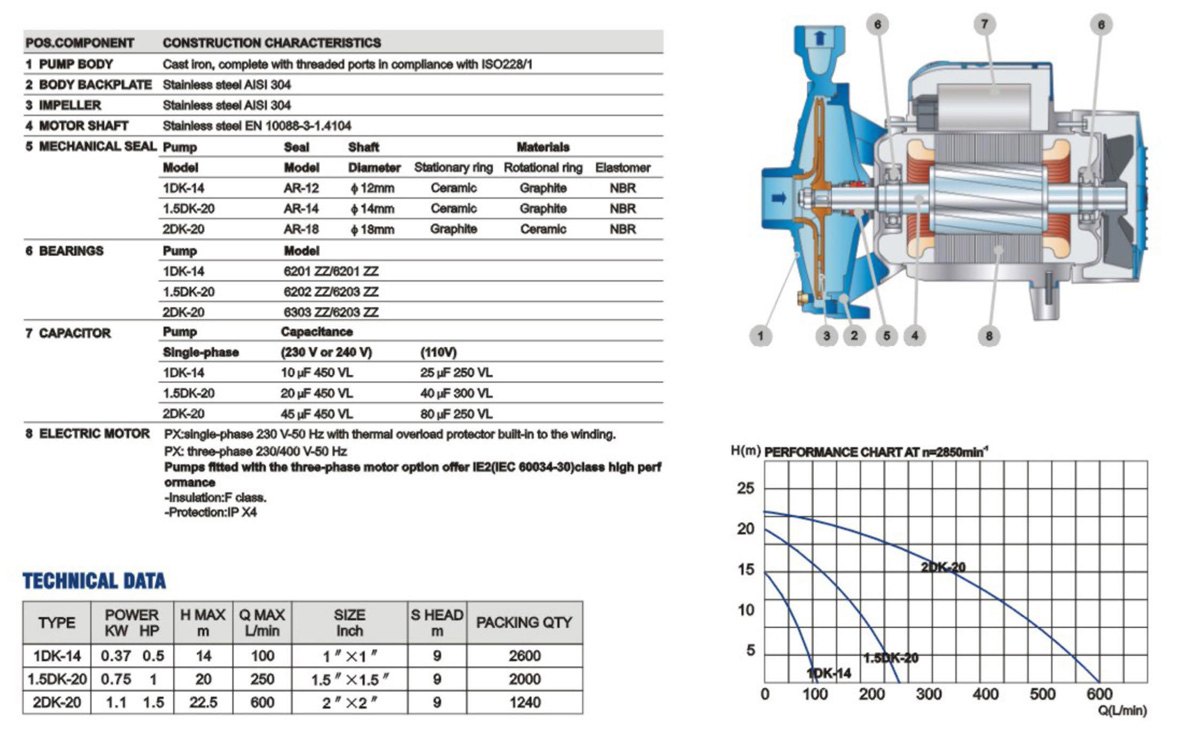

PERFORMANCE RANGE
◆Flow rate up to 600 Lmin.(36m³/h)
◆Head up to 22.5m
OPERATING LIMITS
◆Suction lift up to 9m
◆Fluid temperature up to 60℃
◆Maximum ambient temperature 40℃
STANDARD DATA AND EQUIPMENT
Single phase 220V/50Hz. Brass impeller, carbon steel motor shaft, with thermal protector inside.
Other model and material such as three phase,110V, 60Hz, dual voltage, stainless shaft, etc, will be available upon request.
