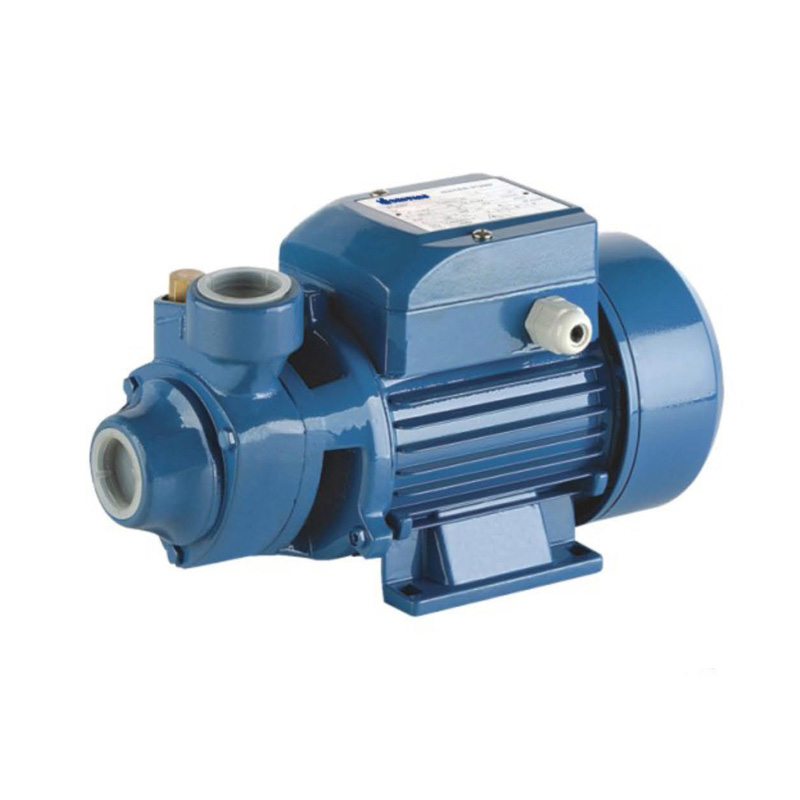

QB60

PERFROMANCE RANGE
Flow up to 45L/min(2.7m3/h)
Head up to 60m
WORKING CONDITION
Suction lift up to 8m
Fluid temperature up to +60°C
Max ambient temperature +40°C
Max working pressure up to 6 bar
APPLICATION
These pumps are for clean water without abrasive particles and the fuids which are not chemically aggressive to the pump componets.
They are used for domestic applicance and for the automatic distribution of water from surge tanks, for watering gardens and for boosting insuficent mains water pressure.
