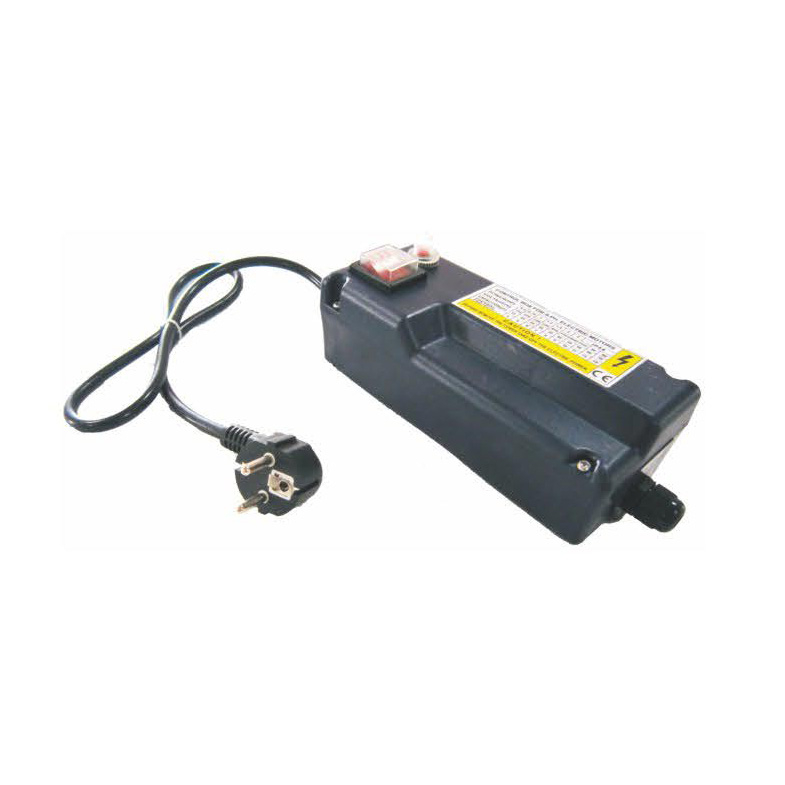

QK101/102
TECHNICAL DATA:
Single phase motor starting controller
Single phase capacitance operating motor is equipped with an
external capacitance and a over-load protector in the starting
controller which can automatically break down power supply
(manual recover)when motor over-loading.
Product functions
-Protect against short circuit
-Protect for over current
Suitable application range
-Type of motor:Single phase capacitance motor
-Motor power: 0.37~1.1Kw
-Voltage: 220~240V
-Frequence: 50Hz
Operating method
-Manual control
Installation environment index
-Grade of protection: IP20
-Environment temperature: -25C~+55°C
-Environment humidity: (20~90)%RH
