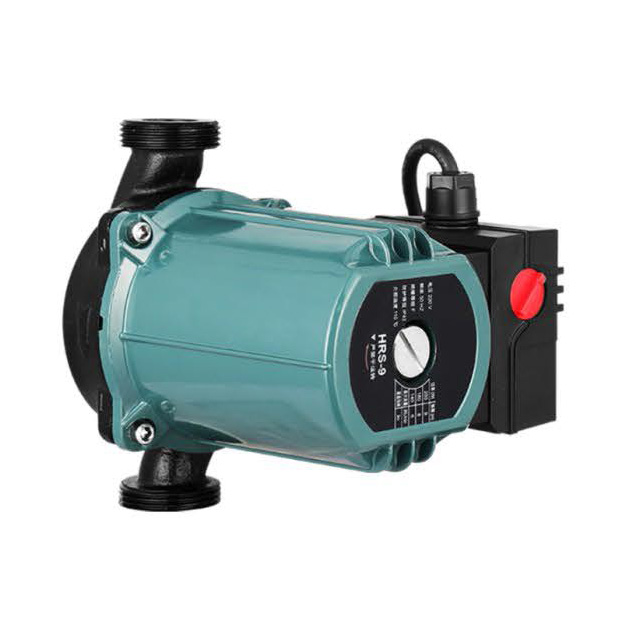

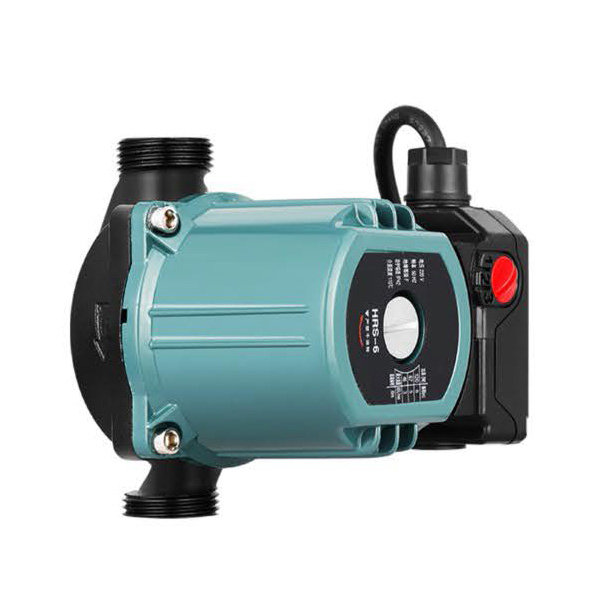

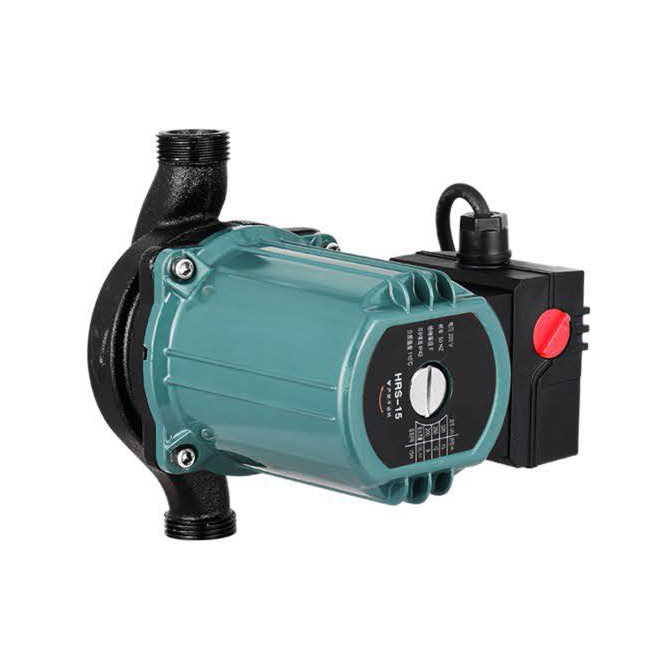

LRS-25/6 PUMP SERIES 1.ldentification Code eg: LRS25/6
LRS Screwed-end pump
25/Connection size
6 Ratedshut-offhead[m]
2.TechnicalData Suitable fluids
Heatingwaterto VD12035
Water/glycolmixtures max.mixingratio 1:1
Hydrauliccorrectionsrequiredformixingratio above20%
Performance Single-speedAutomaticswitch
Fluid temperature range: -10°C -+110°C
Max.working pressure: 10bar
Ambient Temperature Permissible: 40°C
Power Mains power: 1~230v.50Hz
Motor Degree ofprotection: IP42
Insulation class: F
Construction Materials Pump body: Castiron
Impeller: GF-PP
Shaft: Ceramic
Bearings: Ceramic
3.Accessories Union connectorfittings,thermalinsulation
4.Mounting Positions Pump shaft in the horizontal plane, terminal box optionally3.6 9.or 12
5.Pump Equipment o'clock
Screwed end single head pump Manual 3-speed control
Non-overloading single phase motor
Pump body-180mm port-to-port
-130mm port-to-port
