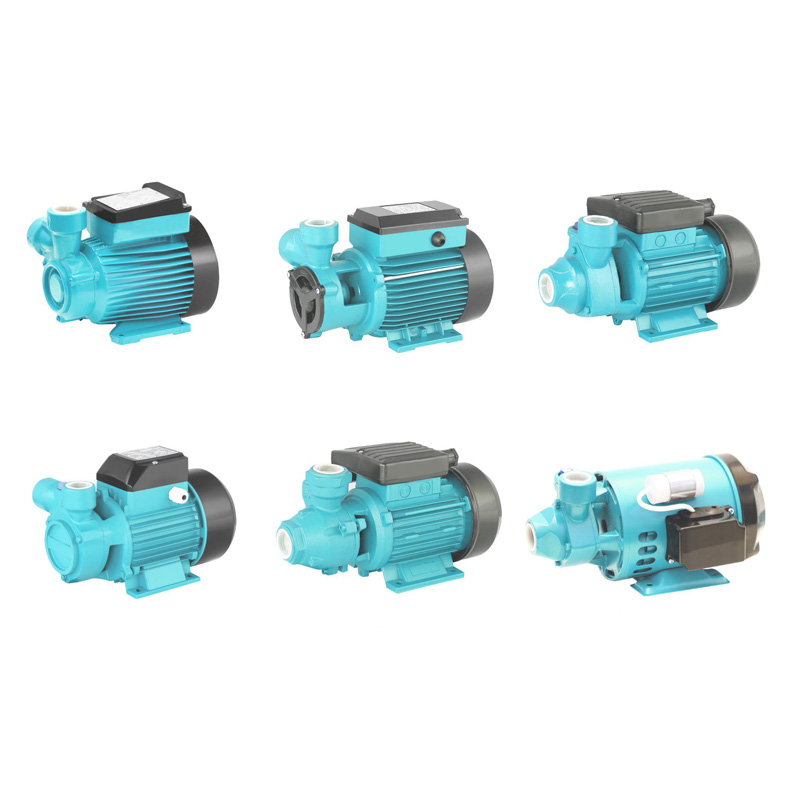

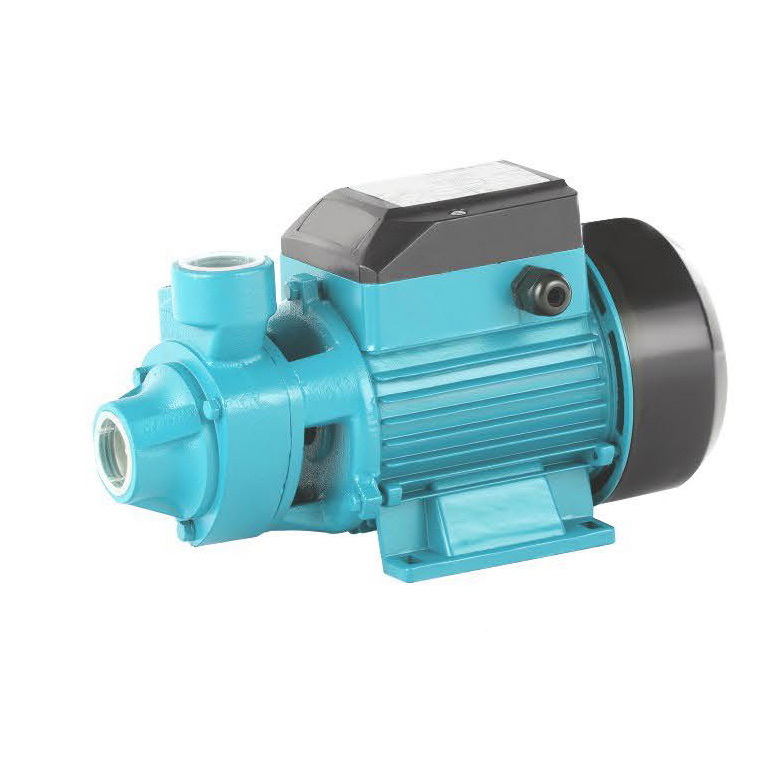

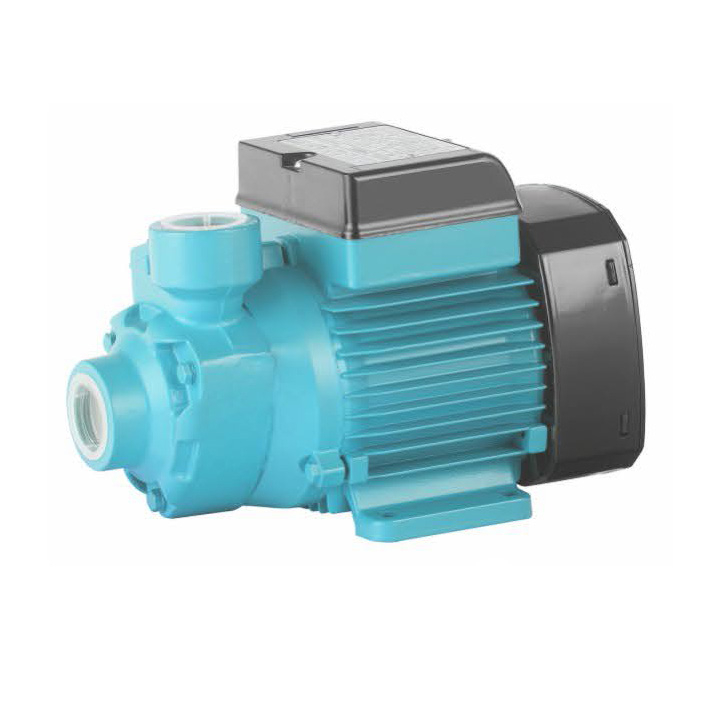

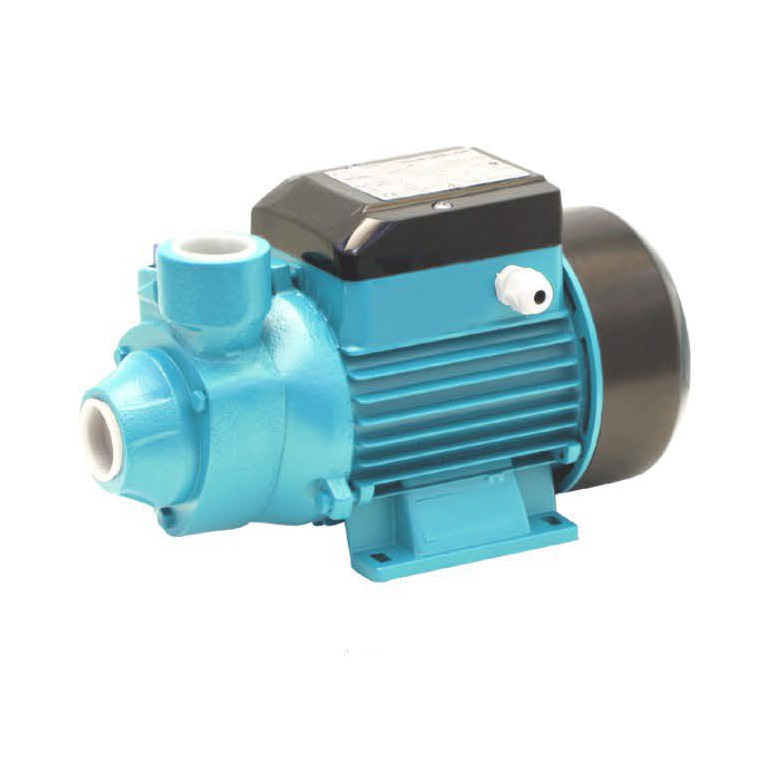

TKM

OPERATING LIMITS
  • Suction lift up to 8 m
  • Clean water,non-aggressive liquid
STRUCTURAL CHARACTERISTIC
  • Brassimpeller
  • 100% Copper winding
  • Single/Three-phase,50/60Hz(on demand)
  • Stainless steelmechanical seal(graphite to ceramic)
  • Fluid temperature up to 40°C
  • Maximum ambient temperature 40°C
  • ProtectionlP44
  • C&U bearing orlocal bearing
  • With thermal overload protector
  • Anti-rust shaft(Hi-Cr plated or welded stainless steel)
Availability:
Inquire Add to Basket

Product Description

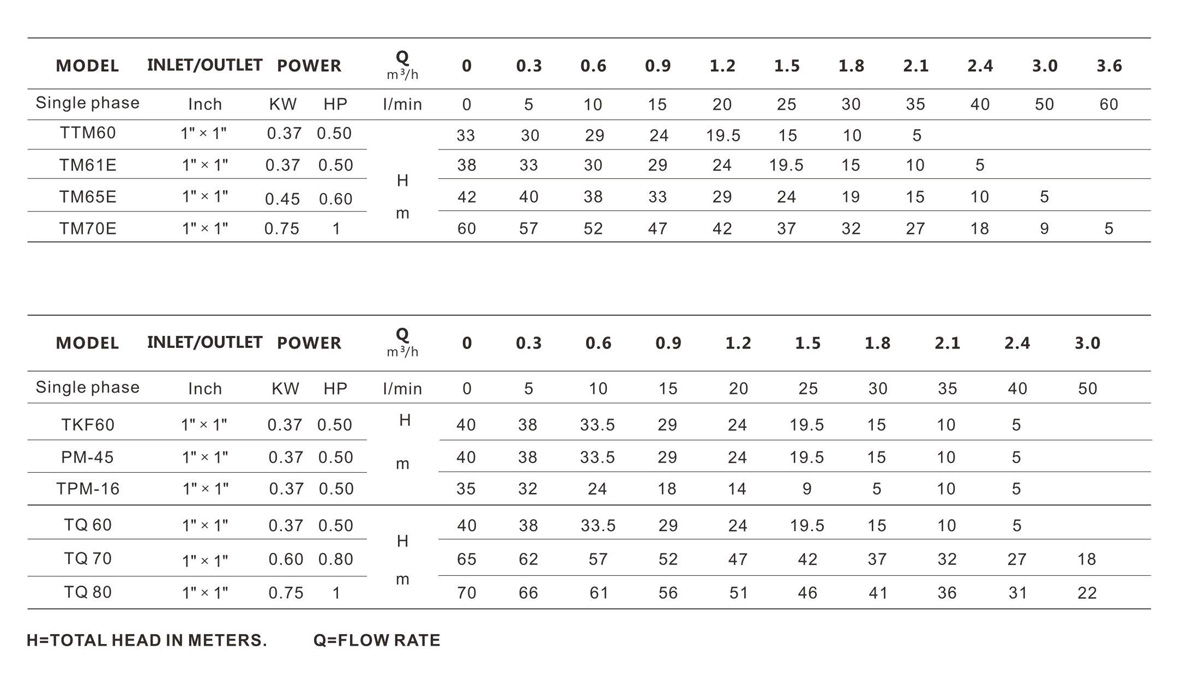

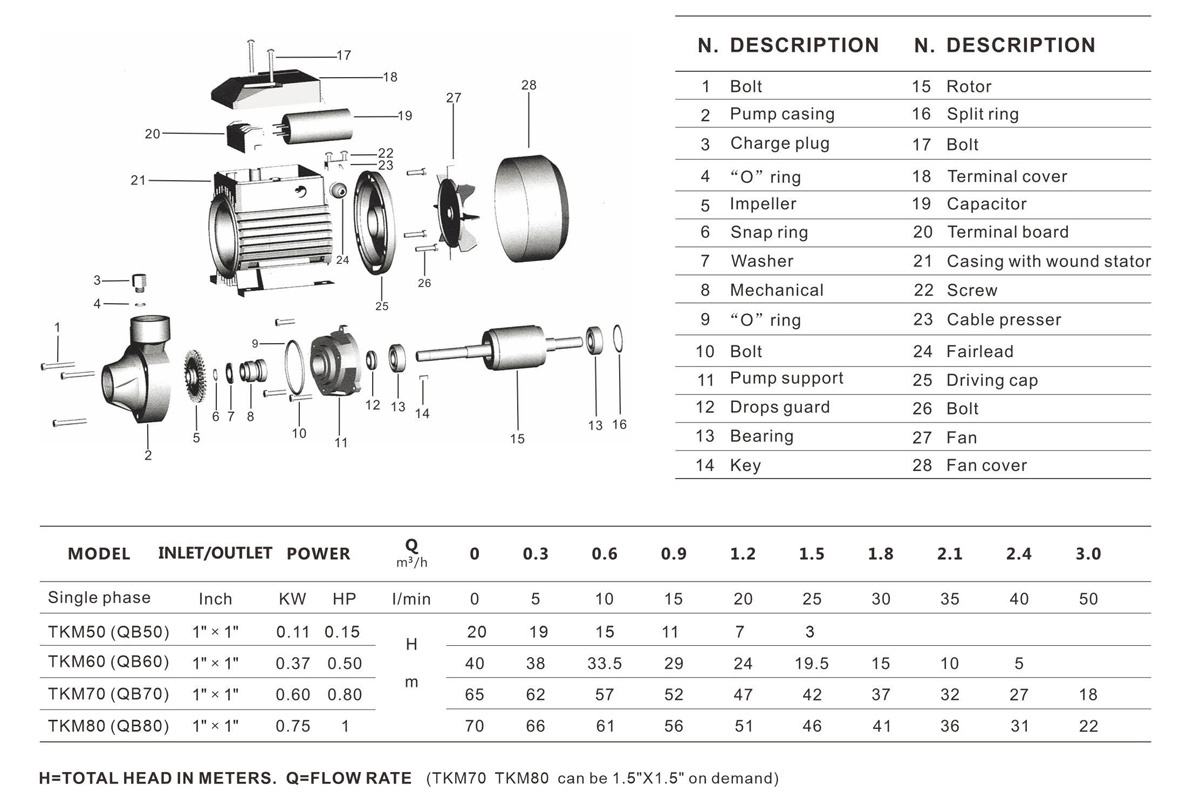

TKM-1TKM-2
